Calibration standards and sets

Calibration standards

Product No. see table

Calibration standard sets

Product No. see table

The PHYNIX calibration standards with a thickness range between 10 µm and 10 mm are used to verify and calibrate coating thickness gauges. If used for a foil calibration, calibration standards whose thickness are in the range of the measured coating thickness, will increase the measurement accuracy.

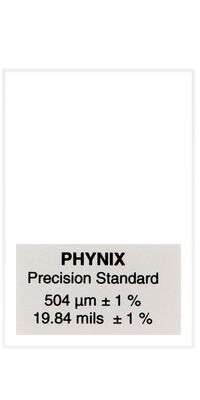

PHYNIX calibration standards consist of wear-resistant hard-plastic films or plates. All standards up to 3 mm thickness have a size of 35 mm x 50 mm, above a size of 50 mm x 50 mm. The thickness values given in the table are nominal values. Deviations from these nominal values are possible due to fluctuations in the films production. All PHYNIX standards are individually measured with a certified length measuring system and labeled in accordance with the determined thickness.

Therefore we can guarantee the specified tolerance of 1 µm (for thicknesses up to 100 µm) or 1 % (for thicknesses greater than 100 µm).

All calibration standards can be calibrated with a manufacturer test certificate type M in accordance with DIN 55350-18. For further details see certificates for calibration standards.

Product No.	Description (all nominal values)
10037	Calibration standard 10 µm (+/- 1 µm)
10038	Calibration standard 30 µm (+/- 1 µm)
10039	Calibration standard 40 µm (+/- 1 µm)
10241	Calibration standard 50 µm (+/- 1 µm)
10040	Calibration standard 100 µm (+/- 1 µm)
10041	Calibration standard 200 µm (+/- 1 %)
10042	Calibration standard 360 µm (+/- 1 %)
10043	Calibration standard 500 µm (+/- 1 %)
10044	Calibration standard 800 µm (+/- 1 %)
10045	Calibration standard 1.000 µm (+/- 1 %)
10266	Calibration standard 1.500 µm (+/- 1 %)
10731	Calibration standard 2 mm (+/- 1 %)
10500	Calibration standard 3 mm (+/- 1 %)
10349	Calibration standard 4 mm (+/- 1 %)
10501	Calibration standard 5 mm (+/- 1 %)
10350	Calibration standard 6 mm (+/- 1 %)
10351	Calibration standard 8 mm (+/- 1 %)
10352	Calibration standard 10 mm (+/- 1 %)

Calibration standards are also available as sets. There are three sets in different coating thickness ranges available:

Calibration standards set 1 for thickness up to 200 µm
Calibration standards set 2 for thickness up to 1.000 µm
Calibration standards set 3 for thickness up to 3.000 µm

Each set consists of 5 calibration standards, one zero standard in iron (Fe) and one zero standard in aluminum ( Al ), all clearly kept in a plastic case.

Product No. 10979 - Calibration standards set 1
Calibration standard 10 µm (+/- 1 µm)
Calibration standard 30 µm (+/- 1 µm)
Calibration standard 50 µm (+/- 1 µm)
Calibration standard 100 µm (+/- 1 µm)
Calibration standard 200 µm (+/- 1 %)

Product No. 11123 - Calibration standards set 2
Calibration standard 50 µm (+/- 1 µm)
Calibration standard 100 µm (+/- 1 µm)
Calibration standard 200 µm (+/- 1 %)
Calibration standard 500 µm (+/- 1 %)
Calibration standard 1.000 µm (+/- 1 %)

Product No. 11124 - Calibration standards set 3
Calibration standard 100 µm (+/- 1 µm)
Calibration standard 360 µm (+/- 1 %)
Calibration standard 800 µm (+/- 1 %)
Calibration standard 1.5 mm (+/- 1 %)
Calibration standard 3.0 mm (+/- 1 %)

Application areas

Calibration standards are used

to increase the measurement accuracy (foil calibration)
to review and validate coating thickness gauges
to verify a gauge calibration
