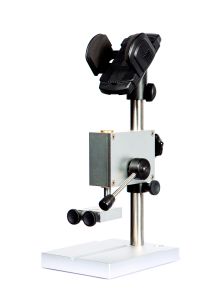

Precision probe guide
Probe guide for a precise coating thickness measurement on small parts such as screw heads, nuts, washers etc. The press-down lever for letting down the probe can be set in an appropriate ergonomic angle position by easy pulling-turning-locking. For secure measurement the guide can be fixed to a table board with a clamp. For easy reading of the display the gauge Surfix® can be fixed to the steel cylinder of the probe guide using an appropriate holder.
Specifications
Design | all-metal (AL-anodised) |
Support hole for the probe | ø 14 mm |
Max. lift over press-down lever | 12 mm |
Max. height adjustment range | 100 mm |
Measurement table, polished Al plate | 120 mm x 160 mm x 20 mm |
Weight | ca. 2.4 kg |
