Precise coating thickness gauge in pocket format



Pocket Surfix®

Choose model
Request a quote

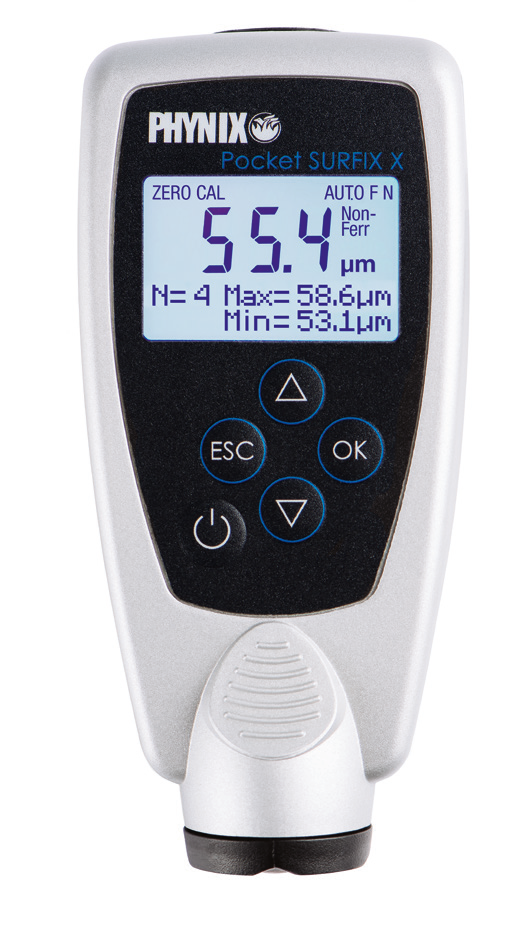

Portable coating thickness gauge

The Pocket-Surfix® X-Series coating thickness gauges are portable gauges enabling quick, reliable and precise coating thickness measurement of varnish, paints and electroplated coatings on iron/steel or non-ferrous metals.

The coating thickness gauges are particularly handy thanks to an integrated probe. The measuring probe has a highly wear-resistant measuring tip made of carbide metal and thus guarantees a very long lifetime. A plastic foot with large footprint and V-groove ensures vertical positioning on level, cylindrical and curved surfaces.

The bright LED backlight enables easy reading of measured values even under difficult conditions. All Pocket-Surfix® X-Series devices have a data memory and can be connected to a PC via a USB 2.0 connection.

Three versions are available:

  • Pocket-Surfix® X-FN: for measurements on iron/steel and non-ferrous metals
  • Pocket-Surfix® X-F: for measurements on iron/steel
  • Pocket-Surfix® X-N: for measurements on non-ferrous metals

Application Areas

Gauges of the Pocket-Surfix® X-family with integrated probes are especially suited for users with defined measuring applications and are used e.g. in:

  • Electroplating industry
  • Paint industry
  • Automotive industry
  • Chemical industry
  • Aerospace industry
  • Ship building industy

Advantages at a glance

  • Innovative and user friendly measurement Technology: Switch on and measure!
  • Online-statistics of all common parameters
  • Data memory
  • Intuitive menu prompting in a freely selectable language
  • LED backlight display for easy reading in dark environments
  • Data-transfer to PC via USB 2.0 connection
  • Pocket-Surfix® X-FN: automatic detection of base material (ferrous / non-ferrous)
  • Low probe tip pressure avoids scratches and indents on sensitive surfaces
  • Incl. data-transfer software PHYNIX.connect
  • Comes with manufacturer's inspection certificate and a two year warranty

Technical specifications Pocket-Surfix® X-family

Measuring principle F-mode (magnetic inductive) for iron/steel
N-mode (eddy current) for non-ferrous metals
Measurement range 0 – 1,500 µm
Accuracy ± (1 µm + 1 % of value)
Resolution 0.1 µm or <0.2% value
Display LED-Backlight, 4-digit alphanumeric, height 8 mm
Calibration method Factory-, zero-, foil-calibration; offset-function: additon of a constant value
Statistics Number of readings, average, standard deviation, minimum, maximum
Data memory Max. 80 values
Interface USB 2.0 connection
Operating temperature 0 °C to + 60 °C
Surface temperature -15 °C to + 60 °C
Dimensions gauge 110 mm x 50 mm x 25 mm
Dimensions probe integrated
Weight 90 g incl. batteries
Protection class IP 52 (protection against dust and dripping water)
Standards DIN, ISO, ASTM, BS
Warranty 2 years

Limit values

Smallest curvature radius for convex surfaces 1.5 mm
Smallest curvature radius for concave surfaces 50 mm
Smallest operation height 125 mm
Smallest measurement area 10 x 10 mm
Smallest base material thickness – F 0,5 mm
Smallest base material thickness – N 50 µm

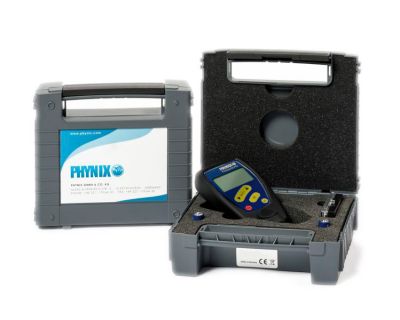

Scope of delivery

Portables Schichtdickenmessgerät
  • Gauge Pocket-Surfix® X-FN, Pocket-Surfix® X-F oder Pocket-Surfix® X-N
  • Protective rubber cover
  • 2 calibration foils
  • zero standard(s) iron/aluminum
  • Carrying case
  • 2 batteries AAA
  • PHYNIX.connect data transfer software
  • Manufacturer's certificate
  • Instruction Manual

Download Brochure

A detailed product brochure with all the technical data can be downloaded here:

Pocket-Surfix X English Pocket-Surfix X German
