The special probes for our coating thickness gauges enable measurements of unusual coatings on many different basic materials. Choose from seven models, depending on application and requirements designed as F probe (magnetic inductive), N probe (eddy current) or FN combined probe (both principles):

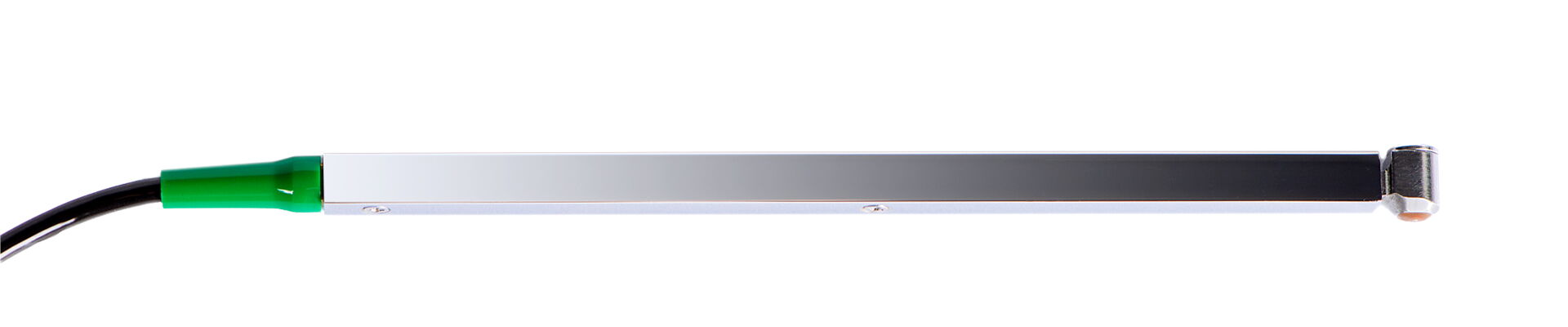

Probe FN 1.5/90°

Tube probe with a measurement range from 0 – 1,500 μm. Especially developed for coating thickness measurement in bores, tubes and grooves. With this probe, coating thickness measurements on difficult-to-access areas are possible with a high measuring accuracy. The newly developed, deflecting suspension of the sensor head results in a very small measuring uncertainty and high reproducibility of measurement values. For measurements on iron/steel and non-ferrous metals. Pipe probe with a measuring range of 0-1,500 μm. Specially developed for layer thickness measurements in holes, pipes and grooves. At a depth of immersion of Ø 13 mm and 165 mm insertion length also coating thickness measurements in hard to reach places with high accuracy are possible. A very low measurement uncertainty and a high reproducibility is achieved by the resilient mounting of the sensor head. For measurements on iron and steel and non-ferrous metals.


Probe FN 1.5R

Rectangular probe with a measurement range from 0 – 1,500 μm. The rectangular position of the sensor head enables measurements on difficult-to-access areas. For measurement on iron/steel and non-ferrous metals.


Probe F 1.5R

Rectangular probe with a measurement range from 0 – 1,500 μm. The rectangular position of the sensor head enables measurements on difficult-to-access areas an. For measurements on iron/steel.

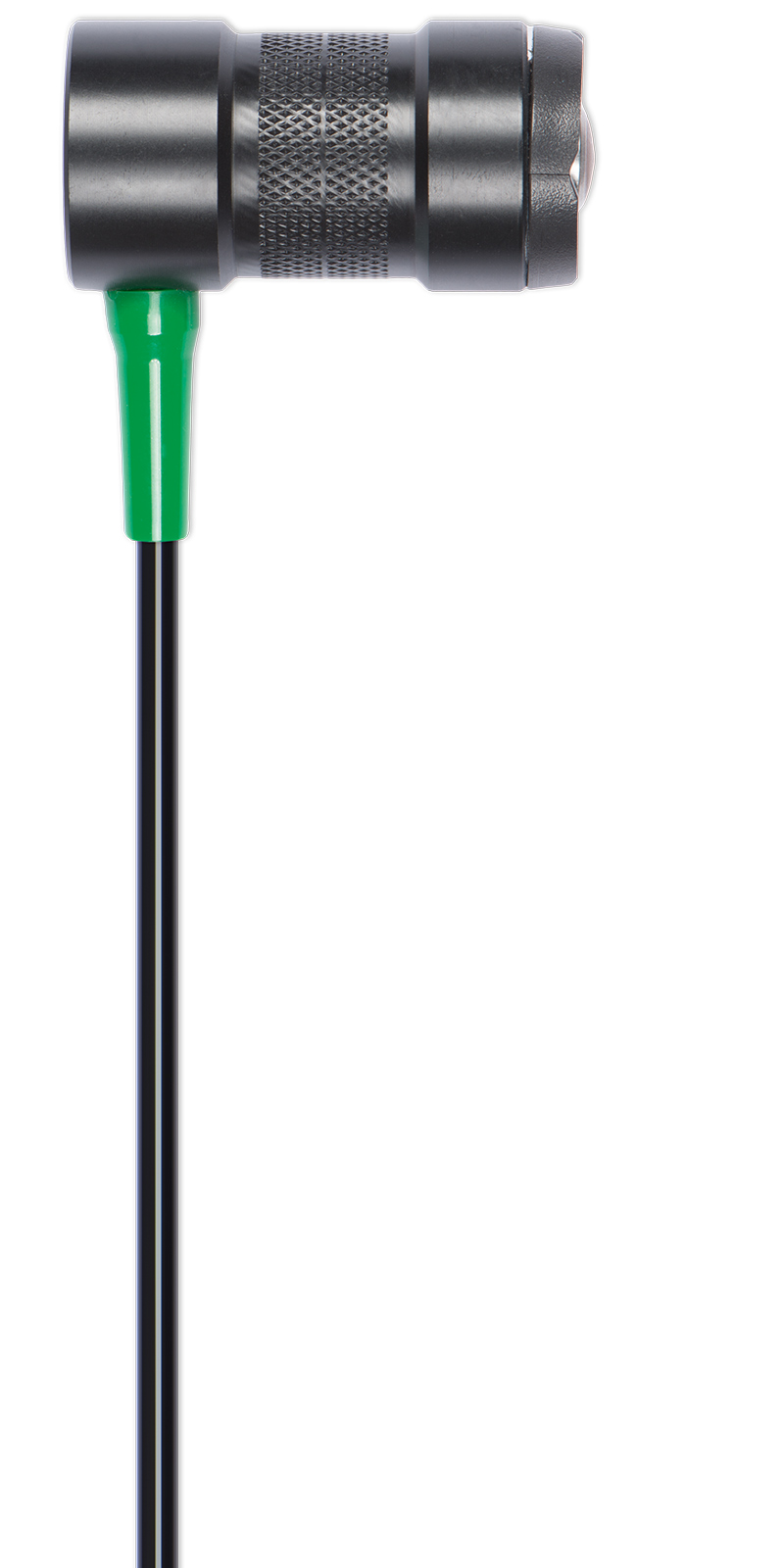

Probe FN 3.5

Rectangular probe with a large measurement range from 0 – 3,500 μm on iron/steel and 0 – 3,000 μm non-ferrous metals. Also for measurements on difficult-to-access areas.


Probe F 3.5

Probe with a measurement range from 0 - 3,500 μm, covers the most common measurement tasks. For measurements on iron/steel.

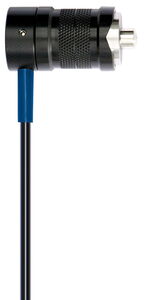

Probe F 10

Rectangular probe with a large measurement range from 0 – 10 mm. For measurements on iron/steel.


Probe F 20

Probe with a very large measurement range from 0 – 20 mm on iron/steel. Especially designed for applications in the vulcanizing industry and container construction.


Special probes at a glance:

  1.5/90° / 11122 FN 1.5R / 10949 F 1.5R / 10950 FN 3.5 / 10750 F 3.5 / 10753 F 10 / 10754 F 20 / 11127
Measurement range 0 - 1,500 µm
on iron/steel and non-ferrous metals
0 - 1,500 µm
on iron/steel and non-ferrous metals
0 - 1,500 µm
on iron/steel
0 - 3,500 µm (F)
0 - 3,000 µm (N)
0 - 3,500 µm (F) 0 - 10 mm
on iron/steel
0 - 20 mm
on iron/steel
Accuracy with factory calibration / +/– 3 μm or 3 %
(whichever is greater)
+/– 3 μm or 3 %
(whichever is greater)
+/– 5 μm or 3 %
(whichever is greater)
+/– 5 μm or 3 %
(whichever is greater)
+/– 10 μm or 3 %
(whichever is greater)
n.a.
Accuracy with zero calibration +/– (1,0 μm + 2 %) +/– (1,0 μm + 2 %) +/– (1,0 μm + 2 %) +/– (2,0 μm + 2 %) +/– (2,0 μm + 2 %) +/– (5,0 μm + 2 %) +/– (10 μm + 4 %)
Accuracy with foil calibration +/– (1,0 μm + 1 %) +/– (1,0 μm + 1 %) +/– (1,0 μm + 1 %) +/– (2,0 μm + 1 %) +/– (2,0 μm + 1 %) +/– (3,0 μm + 1 %) +/– (10 μm + 2 %)
Temperature range 0 °C to 60 °C 0 °C to 60 °C 0 °C to 60 °C 0 °C to 60 °C 0 °C to 60 °C 0 °C to 60 °C +/- (1,0 µm + 1 %)
Dimensions Ø 8 mm x 11 mm x 170 mm Ø 14 mm x 24 mm x 24 mm Ø 14 mm x 14 mm x 14 mm Ø 25 mm x 47 mm Ø 25 mm x 47 mm Ø 25 mm x 47 mm Ø 50 mm x 57 mm
Weight Approx. 90 g Approx. 90 g Approx. 90 g Approx. 105 g Approx. 105 g Approx. 85 g Approx. 200 g

Download prospekt flyers

A detailed brochure with all the technical data can be found here:

Probes German Probes English
