Our new premium product

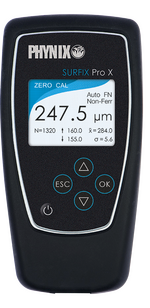

Surfix® Pro X

Request a quote

Suitable probes

State of the art measurement technology

Our new premium product meets the high requirements of modern coating thickness measurement gauges with its´ many new features.

A brilliant high-resolution color display is the most strinking difference to our previous premium product Surfix® Pro S. It features the use of many different character sets, and therefore substantially increases the number of available languages for user guidance e.g. Chinese. The bright high-contrast display makes for a reliable reading of the measurements from a distance or in darkness.

The platform "Industrie 4.0" demands an improved connection of measurment devices and product controls: Surfix® Pro X meets this demand with Bluetooth 4.0 und USB 2.0 interfaces and realizes a fully connected production environment. For this purpose the capacity of the data storage has been upgraded. It can now store up to 100.000 values including date, time and calibration in files and folders.

Surfix® Pro X offers exchangeable probes and highest precision combined with simple handling in almost every application area.

Application areas

  • Electroplating
  • Paint shops
  • Automotive industry
  • Chemical industry
  • Aerospace industry
  • Ship building industry
  • Tyre industry
  • Quality management and final inspections
  • Laboraties and research facilities

Advantages at a glance

  • High-resolution color display
  • Innovative and user-friendly measurements
  • Automatic recognition of the base material
  • Automatic setting of the required measurement mode
  • Data storage for up to 100,000 values with name, date and time and up to 1,000 individual calibration
  • Online-statistics of all common parameters
  • Data transfer via USB 2.0 und Bluetooth 4.0
  • Intuative user guidance – multi language menus
  • Scan-mode for continuous measurements
  • Optional plastic foot to 150 °C or 300 °C
  • Producer inspection certificate
  • 2 year warranty

Technical specifications Surfix® Pro X

Measuring principle Depending on probe; for information see our probe selection
Range Depending on probe up to 30 mm
Accuracy Depending on probe up to
± (0,7 µm + 1 % of measurement)
Resolution 0,1 µm or <0,2% of measurement
Display High-resolution color display
Calibration method Factory-, zero-, foil-, two-foil-calibration
Offset-function: add. or subtract. of a constant value
Statistics Single and block value, selectable block size
Parameter: n, x¯ , s, Min, Max, Kvar, cp, cpk
Memory 100,000 values
Interface Bluetooth 4.0
USB 2.0
Operating temperature 0 °C to + 60 °C
Surface temperatur -15 °C to + 60 °C
to + 150 °C / + 300 °C
(with optional foot)
Dimensions (device) 137 mm x 66 mm x 23 mm
Dimensions (probe) Depending on probe
Weight 205 g incl. batteries
Protection class IP 52 (protected against dust and dripping water)
Standards DIN, ISO, ASTM, BS
Warranty 2 years

Scope of delivery

Gauge Surfix® Pro X
Protective rubber cover
Carrying case
2 batteries AA
PHYNIX.connect data transfer software
Manufacturer's certificate
Instruction manual

Important: Device is delivered without probe. Please choose one or several probes in our
probe selection and order separately.


  • Probes according to PHYNIX delivery program
  • Measurement support for precision measurements on small parts
  • Calibration standards
  • Manufacturer‘s certificate TYP M DIN 55350
  • Soft bag
  • USB cable
  • High temperature feet for measurments on hot surfaces up to 150°C / 300°C

Download product flyer

A detailed product Flyer can be downloaded here:

Surfix Pro X English Surfix Pro X German
