Standard probes

All our standard probes for layer thickness measurement have a high wear resistance measuring pole made of carbide and guarantee a very long service life. The probes are designed for a measuring range up to 1,500 μm. Measurements are possible with both the magnet-inductive measuring method and the eddy current method:

  • For non-destructive coating thickness measurement on iron and steel the magnetic-inductive principle is used. The coating must be non-magnetic – for instance, varnish, paint, enamel, plastic, glass, aluminium, lead, chrome, copper, brass, zinc, tin, etc.

  • The eddy-current principle enables the non-destructive coating thickness measurement on non-magnetic metal substrates eg. aluminium, aluminium alloys, lead, bronze, copper, brass, zinc, die-cast zinc, tin. The coatings under test must be electrically insulating; for instance, varnish, paint, enamel, plastic, glass, anodizing coatings and ceramics

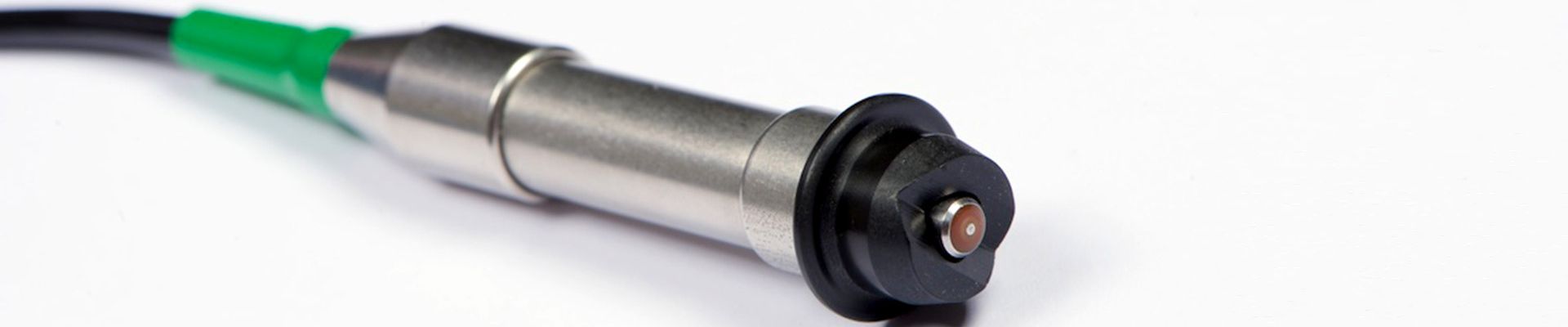

The plastic foot at the foot of the probes is additionally provided with a V-groove. Thus, vertical positioning on cylindrical or curved surfaces is facilitated. With an optional hot-measuring set-up foot, coatings up to 150 ° C can be measured. The high-temperature base, which is also available as an accessory, even allows measurements on surfaces of up to 300 °C.

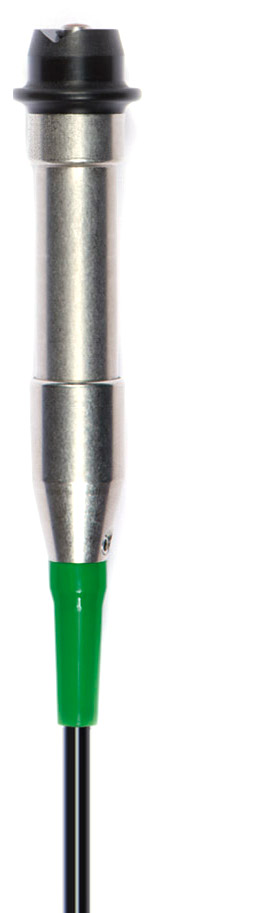

Probe FN 0.2

Highly accurate probe especially for thin layers with a measuring range from 0-200 µm. Combination probe for measurements on iron/steel and non-ferrous metals.The adjustment to the respective base material takes place automatically.

Probe FN 1.5

Standard probe with a measurement range from 0-1,500 µm. Combination probe for measurements on iron/steel and non-ferrous metals.The adjustment to the base material is carried out automatically in the measuring instrument. Also available with an acid resistant pole.

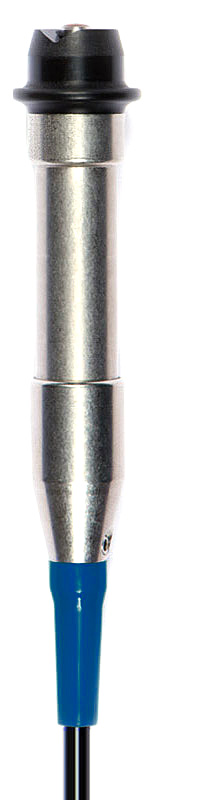

Probe F 1.5

Standard probe with a measurement range of 0 - 1,500 μm. For measurement on iron/steel.

Probe N 1.5

Standard probe with a measurement range from 0 - 1,500 μm, for measurements on non-ferrous metals. In the version with an acid-proof pole, this probe is particularly suitable for electroplating plants.

Standard probes at a glance:

  FN 0.2 /10845 FN 1.5 / 10749 F 1.5 / 10752 N 1.5 / 10755
Measurement range 0-200 µm
on iron/steel and
non-ferrous metals		 0 - 1,500 mm
on iron/steel and
non-ferrous metals		 0 - 1,500 mm
on iron/steel		 0 - 1,500 mm
on non-ferrous metals
Accuracy with works calibration +/- 2,5 µm or 2.5%
(whichever is greater)		 +/- 3,0 µm or 3 %
(whichever is greater)		 +/- 3,0 µm or 3 %
(whichever is greater)		 +/- 3,0 µm or 3 %
(whichever is greater)
Accuracy with zero calibration +/- (0,7 µm + 1.5 %) +/- (1,0 µm + 2 %) +/- (1,0 µm + 2 %) +/- (1,0 µm + 2 %)
Accuracy with foil calibration +/- (0,7 µm + 1.0 %) +/- (1,0 µm + 1 %) +/- (1,0 µm + 1 %) +/- (1,0 µm + 1 %)
Acid-resistant pole tip n.a. optional n.a. optional
Dimensions Ø 14 mm x 83 mm Ø 14 mm x 83 mm Ø 14 mm x 83 mm Ø 14 mm x 83 mm
Weight ca. 70 g ca. 70 g ca. 70 g ca. 70 g
Hot measurement foot optional:
–15 °C to 150 °C		 optional:
–15 °C to 150 °C		 optional:
–15 °C to 150 °C		 optional:
–15 °C to 150 °C
High temperature foot n.a. optional:
–15 °C to 300 °C
(0 to 1,000 μm)		 optional:
–15 °C to 300 °C
(0 to 1,000 μm)		 optional:
–15 °C to 300 °C
(0 to 1,000 μm)
